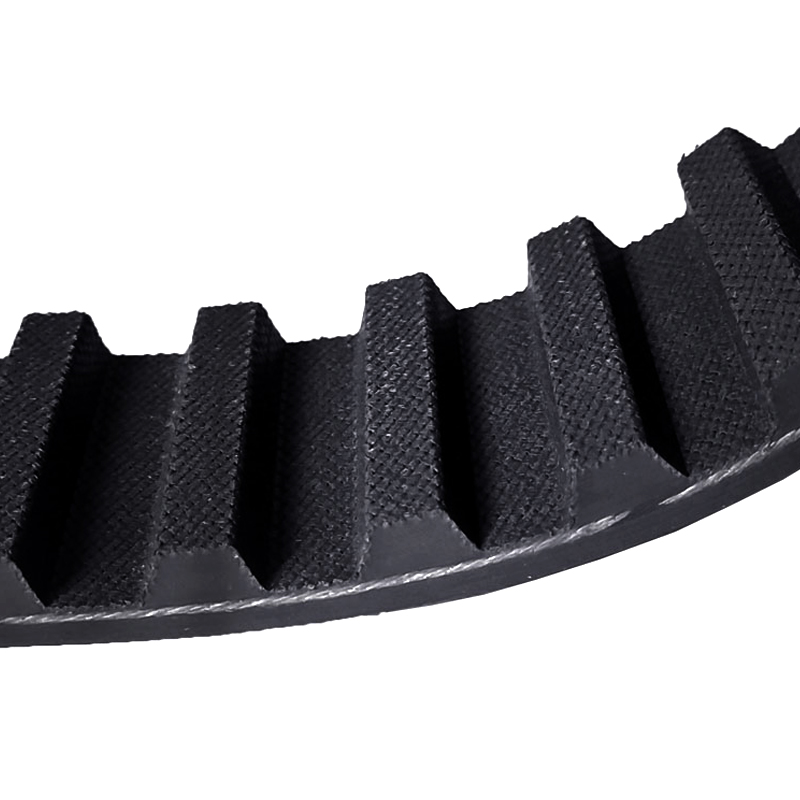

T Series Rubber Timing Belts

Inquiry
  • Description
Type Component Material
MXL/XXL/XL/L/H/XH/XXH/T2.5/T5/T10/T20/AT5/AT10/AT20 ①Back Rubber Neoprene
②Tooth Rubber Neoprene
③Core Wire Glass fiber
④Bottom Cloth Nylon Fabric

Product Paramenters
Type Pitch
MXL  0.80"=2.032mm
MXL  0.125"=3.175mm
XL 0.20"=5.08mm
L 0.375"=9.525mm
H 0.5"=12.70mm
XH 0.875"=22.225mm
XXH 1.25"=31.750mm
T2.5 2.5mm
T5 5mm
T10 10mm
T20 20mm
AT5 5mm
AT10 10mm
AT20 20mm

11 TT

Products Recommended

  • T Series Rubber Timing Belts
    Rubber Wide - Angle Belt
    The wide-angle belt is a new type of industrial transmission belt developed on the basis of the general industrial V-belt technology.
    They are all driven by the friction diagram on both sides of the belt. The wedge angle of the general V-belt is 40° and the wedge angle
    of the wide-angle transmission belt is 60°.
    According to the principle of transmission dynamics, as the wedge angle of the wide-angle belt increases, the area supported by the
    two transmission sides naturally increases, thus giving rise to the following advantages over the general V-belt:
    1. The load of the wide-angle belt is evenly distributed and the wear resistance is improved.
    2. The contact area between the belt and the pulley increases and the transmission force is increased.
    3. It improves the concave deformation of the drive belt core and strengthens the drive characteristics.
    4. After the wide-angle belt is installed and used, the problem of belt tension drop is improved.
    It is the above-mentioned advantages of the wide-angle belt that are widely used and affirmed by the precision machinery industry.
    View More
  • T Series Rubber Timing Belts
    Rubber Conveyor Belt
    The conveyor belt is composed of surface adhesive, core, and layer glue. In addition, a layer of buffer cloth can be added to the use of high drop impact to make it more impact-resistant.

    The surface adhesive
    With natural rubber and synthetic rubber as raw materials and in order to enhance wear resistance, crack resistance, aging resistance, and other properties, the surface adhesive has various characteristics such as wear resistance, cutting resistance, heat resistance, flame resistance, cold resistance, acid and alkali resistance, oil resistance, static electricity resistance and so on.
    Cloth layer core
    The cloth layer is composed of natural fiber or chemical fiber alone or a combination of the two, has the same quality after single-step treatment by a mature process, And has good adhesion with rubber.
    The adhesive layer
    The adhesive layer is very important for the adhesive force between the layers of the core of the conveyor belt that is repeatedly flexed. Especially for high-tension conveyor belts, a layer of adhesive with less buckling stress and less fatigue due to internal stress must be used.
    Specifications and models can be customized according to customer requirements, with a thickness ranging from 2.0 mm to 8.0 mm.
    View More
  • T Series Rubber Timing Belts
    Endless Rubber Flat Belt

    Belt type:
    FH FL FM
    Scope of application:

    High-speed, smooth, and low-extension transmission and conveying systems, such as textile machinery, woodworking machinery, grinding machinery, ticket vending machines, vegetable cutting machines, etc.
    Characteristics:
    High speed and stability, high tensile strength, and low elongation.
    View More
  • T Series Rubber Timing Belts
    Silicone Belt

    Belt type:
    Integrated Vulcanized Silicone Flat Belt and Silicone Synchronized Belt
    Scope of application:

    Sanitary products industry, glass machinery, sealing machine, etc.
    Characteristics:
    Anti-sticking, high friction coefficient, and high-temperature resistance.
    View More
  • T Series Rubber Timing Belts
    Endless Rubber Sanding Machine Belt
    The seamless rubber band produced by woodworking machinery can be used for sanding, correcting, and trimming core materials, planing wood boards, laminated boards, plastic laminated boards, and other machines, and can help the surface to be perfectly machined and selected.
    Its special technology lies in the manufacturing method and produces the required size jointless belt. We not only strictly control the quality, but also insist on using imported materials in order to make our sander belt have better performance.

    All parts of thickness and strength are absolutely uniform.
    It has a good linear operation.
    High flexibility can be used for small wheel diameters.
    It can maintain flatness and non-deformability under working pressure.
    The friction coefficient between the bottom of the belt and the plate surface is very low.
    Because the surface layer of the belt is covered with rubber, the adhesiveness is improved and the stability of the conveyor belt is improved.
    View More
  • T Series Rubber Timing Belts
    Synchronous Pulley

    Scope of application:

    Apply to each field of the synchronous-driven device system.
    Characteristics:
    Ensure coordination with the belt, to enhance the accuracy and lifetime of the driven. According to customer requirements, customization optimum driven solution can divided into 45# steel, aluminium alloy, stainless steel, cast iron, nylon, etc, according to the material.
    View More

Finding reliable suppliers?

contact us
ABOUT
Jiangxi Kangqi Industrial Co., Ltd.
Jiangxi Kangqi Industrial Co., Ltd. is a high-tech manufacturer specializing in Rubber synchronous belts and special belts production, research, and development. We have our famous brand SABLES, KML which is well-known by customers all over the world. And we are also the agency of Japan Bando Belts.
As a professional Trapezoid Rubber Timing Belts Supplier and pk belt Company, Our main products include rubber synchronous belts, double-sided belts, coated feeding belts, flat belts, ribbed belts, tooth-ribbed belts, polyurethane timing belts, conveyor belts and synchronous belt wheels, fish-separation belts, endless belts for high-speed packing and printing machines, nut-shell belt, vegetable-cutting belt and all kinds of special processing belt.
Our factory has the advanced equipment to develop and produce with National and International standards. We also have the advanced long-pitch rubber timing belt mold within 8600mm. Our products are widely used in the printing, packing industry, textile, paper, food industry， cable industries, home appliances, footwear, ceramics, logistics new energy industry, etc. We are a stable supplier for the MiSUMi industry platform.
Our company can produce the Japan Bando light conveyor belts in our factory since we are the machining center of Bando in Shanghai with spot goods and coil material. We have abundant stocks at our branch offices in Shanghai, Foshan, Ningbo, Jinan, Qingdao, Quanzhou, Wuxi, Shenzhen, Wenzhou, and Dongguan to ensure our products provide satisfactory service to customers promptly.
Certificate of Honor
  • Honor 01
  • Honor 02
  • Honor 03
  • Honor 04
  • Honor 05
  • Honor 07
News
T Series Rubber Timing Belts Industry knowledge

T-series rubber timing belts are a type of synchronous belt used in various applications, particularly in automotive engines and industrial machinery. These belts have teeth on the inner surface that mesh with corresponding grooves on the pulleys, providing positive engagement and precise synchronization of rotational motion.

Will the transmission be unstable if the T series rubber timing belt is too wide or too narrow?
Yes, if the T-series rubber timing belt is too wide or too narrow, it may cause unstable transmission.
If the belt is too wide:
A belt that is too wide may not fit properly in the grooves of the pulley, leading to transmission failure or noise generation.
A belt that is too wide will increase friction with the pulleys, which may lead to additional wear and reduce transmission efficiency.
An excessively wide belt may cause the tensioning system to fail to adjust the tension correctly, leading to unstable transmission.
If the belt is too narrow:
Narrow belts may not provide sufficient surface contact area to transmit torque, resulting in insufficient transmission capacity.
A belt that is too narrow may not fit properly in the grooves of the pulley, leading to transmission failure or noise generation.
Narrow belts may experience excessive stress under high load conditions, leading to early wear or rupture.
Therefore, selecting the correct width of the T-series rubber timing belt is crucial to ensure a good match between it and the pulley, in order to ensure the stability, reliability, and performance of the transmission system.

If the tooth shape and pitch of the T series rubber timing belt do not match, will it cause transmission failure?
Yes, if the tooth shape and pitch of the T series rubber timing belt do not match the pulley, it may cause transmission failure.
Tooth shape mismatch:
If the tooth shape of the belt does not match the tooth groove shape of the pulley, the belt cannot bite correctly on the pulley, which will lead to transmission failure.
The mismatch of tooth shape may cause additional friction or vibration of the belt during transmission, thereby accelerating the wear of the belt and pulley and reducing transmission efficiency.
Pitch mismatch:
If the pitch of the belt does not match the pitch of the pulley, the belt cannot be correctly aligned with the grooves on the pulley, which will lead to transmission failure.
Mismatched pitch may cause the belt to slip or jump teeth during transmission, leading to unstable transmission and even causing equipment damage or safety risks.
Therefore, it is crucial to ensure that the tooth shape and pitch of the T series rubber timing belt match the matched pulley to ensure the reliability, stability, and performance of the transmission system. When selecting and installing belts and pulleys, it is important to carefully check their specifications to ensure a good match between them.
